Part Numbers of commonly used Jimny spare parts

General
1

Folks, starting this topic for compiling a list of part numbers of some commonly used spare parts of the Jimny. This can be useful if you want to quickly find out some part number and want to order the spare either from Maruti’s spare part site or other third party sites like Boodmoo etc.

Maruti offers direct purchase of spares from their website at: Buy Car Spare Parts Online - Maruti Suzuki Genuine Parts

S.No Part Name Description Part Number / Specification Quantity Required Cost (Excluding Taxes)
1 ECSTAR PETROL 0W16-CASTROL Engine Oil for Jimny 9999EM00W16-CAS 3.6 Litres 1372.86
2 Cap, Wheel Center Hub Cap for Rear Wheels or Spare Wheel 43252M80T00 As needed 70.31
3 Filter Assy, Oil Engine Oil Filter 16510M68K00 1 80.5
4 Plug, Oil Drain Engine Oil Sump Drain Bolt 11518-63J10 1 67.79
5 Gasket Gasket for Oil Drain Bolt (Above) 09168M14012 1 6.77
5 Plug, T/M Breather Manual Transmission Breather Pipe Cap 27991M79G00 1
11 Likes
3

This is very much needed thread…Thanks for starting it up.

1 Like
4

Here is the Jimny specific url - https://www.marutisuzuki.com/genuine-parts/jimny/2023-till-present/alpha-4at

1 Like
5

IMG_1602
IMG_16023024×4032 2.51 MB

IMG_1603
IMG_16033024×4032 2.86 MB

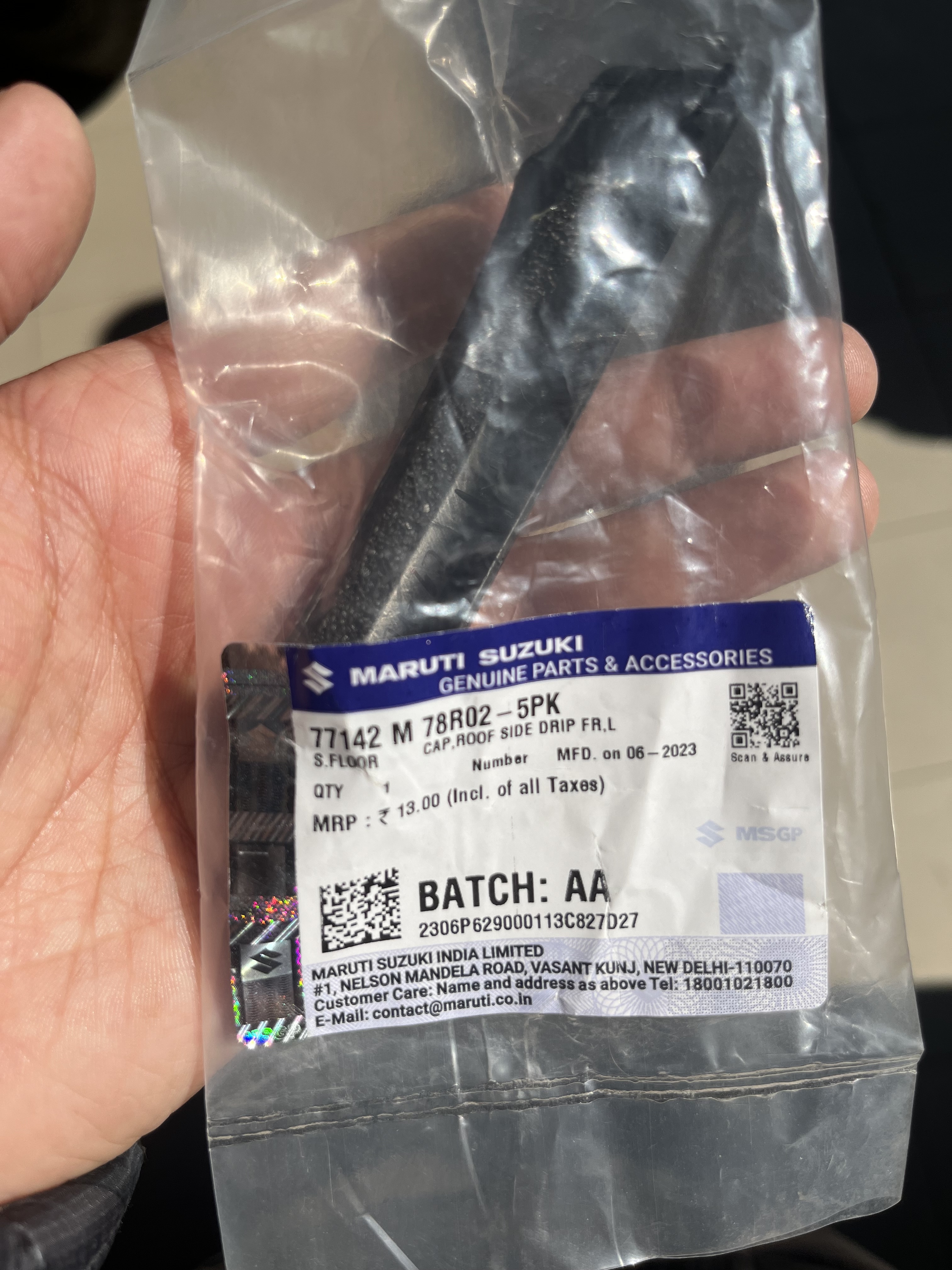

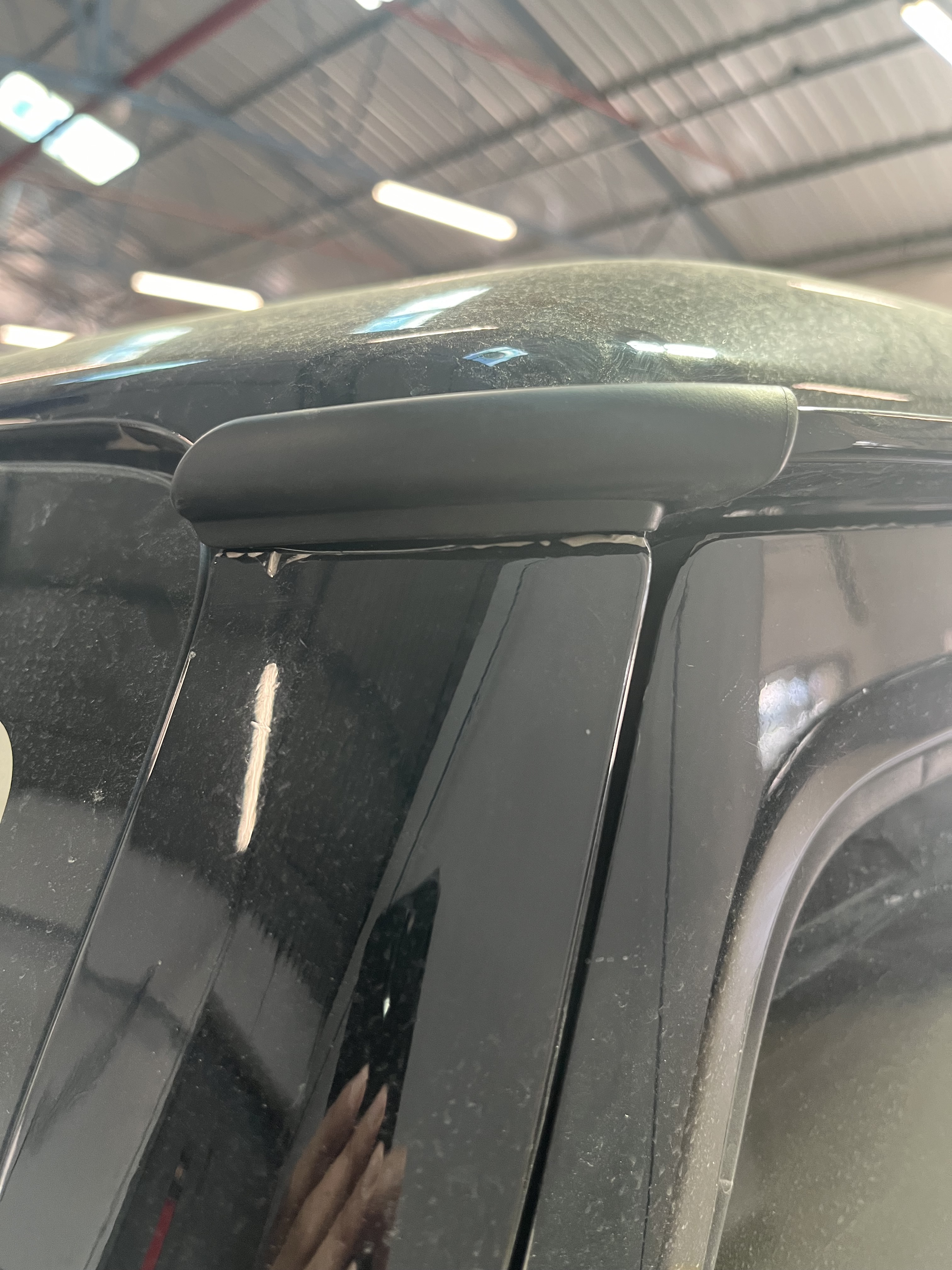

Rubber cap roof left side

2 Likes
6

Has MSGP stopped selling the Ecstar Petrol 0w16 on their online store? Tried to find with part number and text not showing any results.
Might be for getting more exclusivity.

7

Its available at Maruti Authorised Spare Parts shops. I have purchased it from there a few months ago.

It also available service centres although they usually have it in barrels but sometimes they so have in 3.5 litre cans also.

1 Like
